Analysis of Urbanisation’s Relationship with Clean Water Supply Ecosystem Services in Sukoharjo Regency, Indonesia

Aditya Eka Saputra 1, Setya Nugraha 1, Rita Noviani 1,2,*,

1 Geography Education, Faculty of Teacher Training and Education, Sebelas Maret University

2 Magister of Geography Education, Faculty of Teacher Training and Education, Sebelas Maret University

*) Correspondence: ritanoviani@staff.uns.ac.id

The phenomenon of urban population growth is a global concern which will result in a decrease in the value of ecosystem services in an area. Sukoharjo Regency is an area affected by the development of Surakarta City; therefore, rapid growth is taking place. The objective of this study is to investigate the interplay between urbanization, ecosystem services, and the provision of clean water in Sukoharjo Regency in 2022. The methods used in the study were calculating the percentage of the urban population to determine the level of urbanisation, AHP and overlay to ascertain the ecosystem service score, together with cross-tabulation to establish the relationship between these two variables. The result of this study is that the level of urbanisation produces a pattern that districts in the north tend to comprise a higher level. The clean water supply ecosystem services in Sukoharjo Regency obtained results dominated by the low to medium level. The situation regarding the level of urbanisation and ecosystem services in Sukoharjo Regency reveals a relationship where an increase in the level of urbanisation will reduce the value of ecosystem services.

Keywords: AHP, Urbanisation Rate, Ecosystem Services

1.Introduction

The phenomenon of urban population growth is a significant concern. In addition to fertility and mortality, urbanisation is a fascinating process pertaining to population mobilisation. According to Liu et al. (2021), urbanisation is an inevitable social and economic development trend. According to the World Bank, by 2021, more than half of the world's population lived in urban areas. In Europe and North America, over 70% of people inhabit urban areas, while in Asia, 52% of the population resides in urban areas. The currents of urbanisation suggest that humanity is shifting to urban living (Grimm et al., 2008).

Indonesia is one of numerous countries that is experiencing an increase in urban population annually. According to the World Bank (2016), between 2000-2010, Indonesia was the third-ranked country in the Asian region in terms of the amount of urban lands after China and Japan. The increase in urban land stood at 1.1% annually, which is consistent with the increasing rate of urbanisation in Indonesia. Urbanisation will have a significant impact on land cover change. Changes in land cover will result in a downward trend in environmental ecosystem services (García et al., 2018). Urbanisation impacts economic, cultural and social development and indirectly decreases ecological quality, notably in the downtown area and its surroundings. In line with urbanisation, increasing population density and building transportation infrastructure in a city that is not environmentally friendly will reduce the supply of ecosystem services and environmental quality, given that ecosystem services are crucial for human survival (Li et al., 2021).

The impact of increasing urbanisation does not only occur in urban development centres, but even the influence of urban areas on ecosystems goes far beyond urban boundaries (García-Nieto et al., 2018). Urban expansion generally occurs when suburban naturally vegetated land is changed into a watertight surface, thereby interfering with natural processes and ecosystem functions (Klimanova et al., 2021). This indicates that areas that previously had significant ecosystem service capabilities and were able to support urbanisation within a specified time when they crossed the threshold of ecosystem services, would experience a reduction. Chen et al. (2021) emphasise that urbanisation is the principal controller of landscape change and the primary factor driving the loss of ecosystem services. According to Bintarto (cited in Hose et al. 2018), the central and peripheral regions are one complete spatial system. The ecosystem services in question produce various products and services that support the survival and development of the human population (Yang et al., 2019).

Sukoharjo Regency is directly adjacent to Surakarta City, the centre of development in the Sukoharjo, Boyolali, Surakarta, Wonogiri, Sragen and Klaten Regency (Subosukawonosraten) area. Sukoharjo Regency is impacted more compared to other regions bordering Surakarta City. Mardiansjah et al. (2018) suggest that spatially, urban development in the suburban area of Surakarta City is inclined to be towards the south or specifically, in the direction of Sukoharjo Regency. Four Districts in Sukoharjo Regency are directly adjacent to Surakarta City, notably Grogol, Baki, Mojolaban and Kartasura Districts. These particular districts will stimulate urbanisation in Sukoharjo Regency. Muta'ali (2015) asserts that the urbanisation rate can be determined by the percentage of the urban population. The increase in the level of urbanisation in Sukoharjo Regency has been observed to be significant. Mardiansjah et al. (2018) point out that between 1980-2010, urbanisation in Sukoharjo Regency increased. In 1980, the urbanisation rate was only 21.26%. Nevertheless, by 2010, it had experienced a significant increase reaching 76.72%, almost four times the initial rate. The urban population in Sukoharjo Regency is presented in Figure 1.

Figure 1. Urban Population Level in Sukoharjo Regency 1980-2022.

Urban population growth also has environmental and social implications (Selang et al., 2018). In their study, Klimanova et al. (2021) state that there was a change in land function from initial vegetation to a watertight area in the suburban area. Urbanisation is an key factor influencing the decline of ecosystem services (Noviani, 2021). Land expansion can reduce ecosystem services, which can also be indirectly reflected by means of population growth and economic development (Wang et al., 2019). Similarly, population growth will result in population density due to limited land. One of the characteristics of urban areas is population density (Nurjannah et al., 2018). Based on data from the Central Statistics Agency of Sukoharjo Regency, between 2016-2020, the population density of the Sukoharjo Regency increased from 1852 people/km2 to 1945 people/km2.

The population growth in the periphery area contributes the most to the formation of built-up land (Selang et al., 2018). The allocation of land is incompatible with planning based on personal and industrial interests, causing various problems. In reality, land cover changes in Sukoharjo Regency are inclined toward industry and communities (Okmaliasari, 2021). Ecosystem services are affected by landforms, vegetation, as well as land cover (Baco et al., 2020). Trends generally indicate a reduction in the supply of ecosystem services due to changes in land cover in suburban areas (Nieto et al., 2018). Each region has different natural resources according to its capacity. The area will appear neglected if the environment cannot support life appropriately. Moreover, slums are the unhealthiest of residential locations; hence, it is vital to consider ecosystem services which support human life (Winayanti, 2016). The most important ecosystem services in urban areas pertain to the provision of ecosystem services. The provision of ecosystem services relates to those services that are primarily associated with urgent and well-defined development goals, such as food security, attempts at income generation, along with the conditions associated with employment, health and nutrition (Lossack et al., 2012).

Water is an essential natural resource providing socio-economic and ecological benefits for all life on earth, notably people (Molla et al., 2023). The existence of and access to water is fundamental for human life, and as the population increases, the availability of raw materials for clean water will begin to diminish (John et al., 2023). Additionally, if not balanced with good water resource management, every single human activity that require water can impact the quality and quantity of water resources (Muchtar et al., 2023). Ecosystem services providing clean water are crucial for life (Baco et al., 2020). Likewise, access to water is a human right (Portillo et al., 2023). Clean water is an important indicator of ecosystem functioning and is imperative in regard to sustainable development (Admasu et al., 2023). In their study, Wang et al. (2019) assert that urbanisation results in a substantial reduction in ecosystem services with respect to providing clean water. Ecosystem services are essential for equitable and sustainable development (Lossack et al., 2012). Admasu et al. (2023) argue that urban growth can reduce the amount of water supply. Land-use change has a considerable impact on the distribution pattern of water availability and rapid urbanisation is a key driver of increased demand for water (Chen et al., 2023). According to Wei et al. (2021) water has a direct impact on the sustainable development and ecosystem of a region. Furthermore, the utilisation of natural resources that exceed the restoration of natural potential or the environment's carrying capacity will trigger the loss of natural resources (Muta'ali, 2015). The calculation of clean water supply ecosystem services is essential for the sustainability of a city. The objectives of this study are (1) Identifying the state of the level of urbanisation; (2) Understanding the state of ecosystem services providing clean water; and (3) Recognising the relationship between the level of urbanisation and ecosystem services for providing clean water in Sukoharjo Regency in 2022.

2. Research Method

2.1 Urbanisation Rate

Munir (cited in Nurjannah et al. 2018) asserts that urbanisation can be conducted by analysing the population within a defined city area. Demographically, urbanisation can be measured by the percentage of people living in urban areas (Muta'ali, 2015). Therefore, measuring urbanisation can be performed by using Equation 1; where U is level or rate of urbanisation (%), JPk is Number of residents living in the city, and JP is total population.

(1)

Determination of the classification of urban and rural areas over villages using the method for determining the Badan Pusat Statistik Republik Indonesia (BPS RI) value/score (2020). The classification of the values/scores employed is as follows: (1) classification of urban villages if all three criteria has a score of 9 (nine) or more; (2) the classification of rural villages in the three criteria has a score below 9 (nine). The third score, the classification criteria score for urban and rural villages in the research location. According to the Central Statistics Agency of the Unitary State of the Republic of Indonesia (2020), the value/score for population density, percentage of agricultural families and urban presence/access are presented in Table 1.

Table 1. Urban and Rural Village Classification Criteria Value/Score.

No

Criterion

Score

1

Population Density Per km²

<500

500-1,249

1,250-2,499

2,500-3,999

4,000-5,999

6,000-7,499

7,500-8,499

8,500



1

2

3

4

5

6

7

8

2

Percentage of Family Farms (%)

≥ 25 %

< 25 %



0

1

3

Urban Facilities





Kindergarten or equivalent

Junior High School or equivalent

High School or equivalent

Pass

Shops

Cinema

Hospital/ Maternity home/ Puskesmas/ Clinic

Hotel/Bank

1

1

1

1

1

1

1

1



Percentage of Electricity User Families

< 95,00

≥ 95,00



0

1

Source: Muta'ali, (2015); BPS RI (2020)

The results of calculating the urbanisation rate are then classified (see Table 2).

Table 2. Classification of Urbanisation Rate.

No

Urbanisation Rate

Level

1

>66.66%

High

2

33.33-66.66%

Medium

3

<33.33%

Low

Source: Data Processing Researcher, 2022

2.2 Clean Water Supply Ecosystem Services

Measurement of the environment’s carrying capacity for the provision function applying two parameters or indicators, in particular ecoregion and land cover, is given a score that was obtained based on prioritising the role using the Analytic Hierarchy Process (AHP). The Analytic Hierarchy Process (AHP) is a method that can be employed in role determination (Agus et al., 2019) and which also supports decision-making using more than one criterion to overcome complex problems (Muta’ali, 2015). The application of the AHP determines the role of an ecoregion and land cover in determining ecosystem services (Ferreira et al., 2023). This approach involves stakeholder groups, scientific experts or by way of workshops to determine the role of each criterion (Wibowo et al., 2011). The AHP method can provide a role for a factor by way of the existing conditions of an area because it is supplied by the opinions of experts residing in the region (Seena et al., 2023). As role determination, this stakeholders in this study are the Head of the Inventory Division, RPPLH and KLHS - DLH Sukoharjo, specifically Abdul Rahman Saleh, ST. Score determination is performed based on the results of the completed questionnaire. The results of the AHP questionnaire are in the form of scores or values for land cover and ecoregions, which are subsequently used as the basis for calculating ecosystem services as regards the provision function (Agus et al., 2019).

The Analytic Hierarchy Process (AHP) generates relative weights between criteria and alternatives. A criterion will be compared with another regarding its importance in relation to achieving the goals. The scores that have been obtained need to be matched by means of data normalisation. In this case, the Consistency Ratio (CR) in the AHP is not allowed for more than 10% or CR<0.1. If CR>0.1, the data retrieval must be repeated because the data is too biased. The results of the stacking process obtained maximum scores and minimum scores, which were then divided into three levels, for example (1) low, (2) medium and (3) high. The classification of levels of ecosystem services is presented in Table 3.

Table 3. Ecosystem Service Classification.

No

Urbanisation Rate

Level

1

>66.66%

High

2

33.33-66.66%

Medium

3

<33.33%

Low

Source: Data Processing Researcher, 2022

2.3 Relationship between the Urbanisation Rate and Clean Water Supply Ecosystem Services

This study uses cross-tabulation to establish the relationship between the level of urbanisation and ecosystem services pertaining to the role of a clean water supply. Cross-tabulation is a basic analysis of relationships between variables (Haniff & Syafriharti, 2017). According to Hernández et al. (2023), cross-tabulation can explain relationships utilising a simple method and can also help to determine the direction the relationship is proceeding. Cross-tabulation can be employed in regional planning as a decision-making tool (Indratno et al., 1998). The level of urbanisation and carrying capacity based on ecosystem services in Sukoharjo Regency is divided into three separate levels, notably low, medium and high, in each district. The two variables will then be superimposed, with the aim of understanding the existing relationship. The relationship in this study is assumed to be negative where areas with a high level of urbanisation will have a low carrying capacity based on ecosystem services (Burlakova et al. 2023). This study did not test the sample but the entire population. Hence, there is no need for a relationship test where the relationship cross-tabulation and overlay are applied.

3. Results and Discussion

3.1. Urbanisation Rate

Sukoharjo Regency is divided into 12 districts that have their own distinct characteristics. Districts in the north of Sukoharjo Regency tend to have higher urbanisation than districts in the southern part. Based on the calculation of the urbanisation rate, Sukoharjo Regency is included in the medium level with an urbanisation rate of 63%, signifying that 552,793 people live in urban areas. The urbanisation rate of each sub-district in Sukoharjo Regency is presented in Table 4.

Table 4. Sukoharjo Regency Urbanisation Rate in 2022.

No

District

Urban Population

(Soul)

Population

(Soul)

Urbanisation Rate

(%)

Level

1

Baki

49.617

70.841

70

High

2

Bendosari

30.049

65.260

46

Medium

3

Bulu

10.039

39.520

25

Low

4

Gatak

36.687

16.495

69

High

5

Grogol

110.731

121.414

91

High

6

Kartasura

105.311

109.724

96

High

7

Mojolaban

65.135

91.775

71

High

8

Nguter

11.576

57.285

20

Low

9

Polokarto

32.843

87.611

37

Medium

10

Sukoharjo

64.324

98.044

66

Medium

11

Tawangsari

14.678

57.815

25

Low

12

Weru

21.803

59.495

37

Medium

Sukoharjo Regency

552.793

875.279

63

Medium

Source: Data Processing (Researcher, 2022)

Based on Table 4, it is evident that most districts in Sukoharjo Regency have a high level of urbanisation. Kartasura District boasts the highest urbanisation rate in Sukoharjo Regency at 96%, with 105,311 out of 109,724 residents living in urban areas. Along with Kartasura District, Grogol Subdistrict is an area with a high level of urbanisation. The urbanisation rate in Grogol District is 91%, indicating that 110,731 of the 121,414 people live in urban areas, while Mojolaban District has an urbanisation rate of 71%. Other districts with high urbanisation rates are the districts of Baki and Gatak. The high level of urbanisation suggests that most of the population in the five districts live in urban areas.

Sukoharjo Regency comprises four districts that have a medium level of urbanisation, for example Bendosari, Sukoharjo, Polokarto and Weru. Within the district of Sukoharjo, urbanisation is in the medium level but is acknowledged to be approaching a high level. Sukoharjo Subdistrict where 64,324 of the 98,044 inhabitants live in urban areas, has an urbanisation rate of 66%. Other districts with a medium level of urbanisation are Bendosari, with an urbanisation rate of 46%, along with Polokarto and Weru districts, with 37%.

Pertaining to Sukoharjo Regency, the level of urbanisation in the low level is observed in three particular districts, including Bulu, Nguter and Tawangsari. The definition of a low-level urbanisation rate is that most of the population in the region lives in rural areas. The district with the lowest urbanisation rate is Nguter District at 20%, with only 11,576 of the 57,285 people living in urban areas. Bulu Subdistrict with only 10,039 of the 39,520 inhabitants living in urban areas has an urbanisation rate of 25%. Likewise, Tawangsari Subdistrict also comprises an urbanisation rate of 25%. The low-level urbanisation rate in the Sukoharjo Regency is predominantly in the southern region. Figure 2, illustrates the distribution of urbanisation rates in the Sukoharjo Regency.

Figure 2. ap of the Urbanisation Rate in Sukoharjo Regency in 2022.

Figure 2 presents the spatial pattern in relation to the high urbanisation levels in the northern part, including Kartasura, Gatak, Baki, Grogol and Mojolaban districts. Sukoharjo Regency is close to Surakarta City, thereby indirectly impacting the city’s development. Sukoharjo Regency has a sub-district with a medium level of urbanisation in the central part of the district, including Polokarto, Sukoharjo and Bendosaeri districts, as well as one area in the southern region, namely Weru District. The low urbanisation rate in Sukoharjo Regency is spread across the southern part of Sukoharjo Regency, including Tawangsari, Bulu and Nguter districts. The urbanisation pattern, starting from the northern part of Sukoharjo Regency, is similar to the development in Surakarta City, although the southern part has a lower rate. The situation regarding the urbanisation distribution pattern has the potential to redevelop towards the south in Sukoharjo District and Polokarto District.

There are several reasons for the high urbanisation rate in Grogol and Kartasura District. In both areas, the percentage of farming families <25% ranges from 0-22.7%. Both areas have up-to-date urban amenities. The population density in Grogol District ranges from 1,126-12,833 people/km², whereas Kartasura District has a population density of 2,381-11,206 people/km². The factor that affects the lower urbanisation rate in Baki, Gatak and Mojolaban districts compared to other districts that have a high urbanisation rate, is the low population density. Of note is that the facilities in the three regions are still not as advanced as those in Grogol and Kartasura. Moreover, to accommodate the high level of urbanisation, it is essential that amenities in each of the districts are modernised.

Districts with medium urbanisation rates are located in Sukoharjo, Polokarto, Bendosari and Weru districts. Sukoharjo Subdistrict has a large area of irrigated paddy land cover. As a consequence, it has a farming population that ranges from 7-79% and a population density of between 1,155-4,528 people / km², which is still below Kartasura and Grogol. Owing to its lower population density, Sukoharjo Regency does not have appropriate urban facilities, resulting in a moderately low urbanisation level. Polokarto District and Bendosari District have the same characteristics as Sukoharjo and Polokarto districts. They have a small number of urban villages, although the number of inhabitants in the urban villages is high compared to other regions. A distinctive situation is that Weru District has an urbanisation rate of 37%, whereas in relation to the different districts south of Sukoharjo Regency, Weru District has fairly reasonable urban facilities. As it is the meeting point for Gunung Kidul and Klaten, Weru District has relatively adequate urban facilities. Districts with low urbanisation rates are observed in Tawangsari District (25%), Bulu District (25%), along with Nguter District (20%). All three districts continue to exhibit relatively low population densities, a high percentage of the farming population (mostly >25%) and inadequate facilities. To bridge the gap between the northern and the southern districts, the local government should prioritise the three districts characterised by low urbanisation rates.

3.2. Clean Water Supply Ecosystem Services

Thomaz (2023) contend that ecosystems can support life by providing benefits through the availability of clean water, whilst Petrova et al. (2023) maintain that water is essential for the life of living beings, particularly humans. Furthermore, rain and soil or rock layers help to provide clean water. Other factors such as ecoregions, vegetation, in addition to land cover impact the ecosystem services providing clean water. The potential of clean water will be significant in supporting the lives of people in peri-urban areas.

The criteria score is measured using the AHP matrix to determine the score for each criterion. The Consistency Ratio (CR) is 5% for both ecoregions and land cover; hence, the data is valid for use. The criteria used are ecoregion and land cover, which are subsequently overlaid to create an ecosystem services map. The ecoregion and land cover map of Sukoharjo Regency is presented in Figure 3.

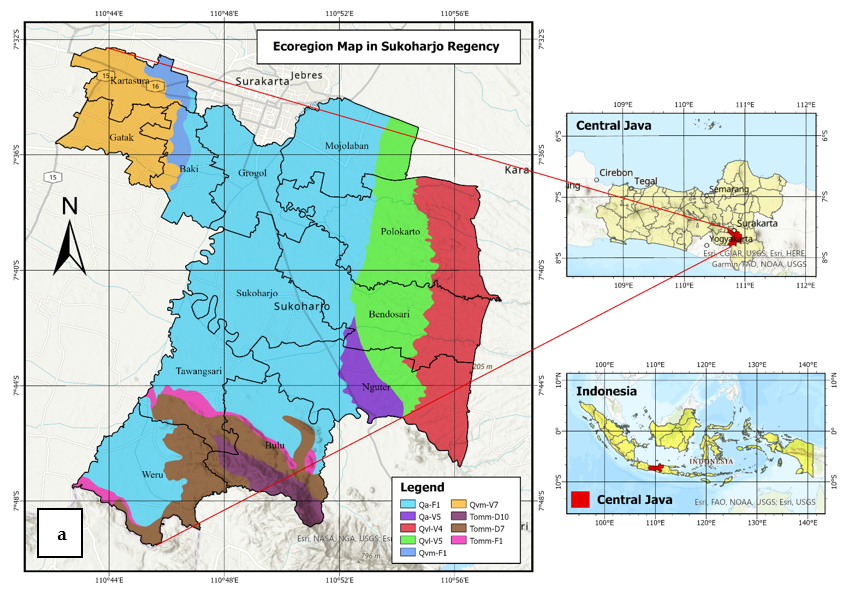

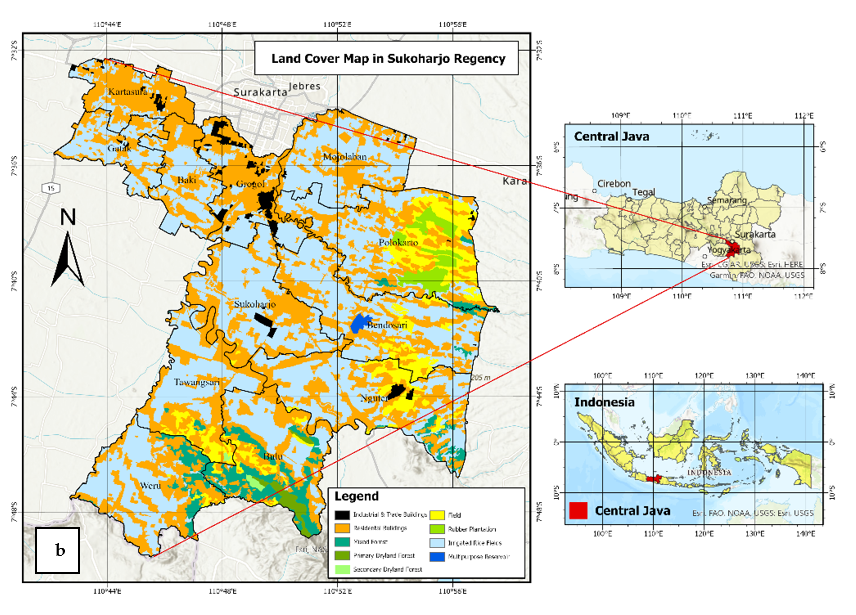

Figure 3. Map of Ecoregion (a) and Land Cover (b) of Sukoharjo Regency.

The first criterion relates to ecoregions. There are nine ecoregions within Sukoharjo Regency. The AHP analysis conducted based on the results of the questionnaire is presented in Table 5.

Table 5. AHP Analysis of the Ecoregion in Sukoharjo Regency.

Ecoregion

Qa-F1

Qvm-F1

Tomm-F1

Qvm-V7

Tomm-D7

Tomm-D10

Qa-V5

Qvl-V5

Qvl-V4

Qa-F1

1

2

3

2

3

3

1

1

1/2

Qvm-F1

1/2

1

2

2

2

3

1/2

1/2

1/2

Tomm-F1

1/3

1/2

1

1/2

2

3

1/3

1/4

1/2

Qvm-V7

1/2

1/2

2

1

2

3

1/2

1/2

1/3

Tomm-D7

1/3

1/2

1/2

1/2

1

2

1/4

1/2

1/3

Tomm-D10

1/3

1/3

1/3

1/3

1/2

1

1/5

1/4

1/4

Qa-V5

1

2

3

2

4

5

1

1/2

1/3

Qvl-V5

1

2

4

2

2

4

2

1

1/3

Qvl-V4

2

2

3

3

3

4

3

3

1

Total

7.00

10.83

8.50

6.00

10.00

14.00

2.58

2.75

2.17

Source: Analysis of AHP Questionnaire for Ecoregion Based on Expert Opinion (2022)

The second criterion pertains to land cover. Sukoharjo Regency has nine types of land cover. The results of the AHP analysis based on the questionnaire are presented in Table 6.

Table 6. AHP Analysis of Land Cover in Sukoharjo Regency.

Land Cover

Industrial and Trade Building

Mixed Forest

Primary Dryland Forest

Secondary Dryland Forest

Fields

Rubber Plantation

Irrigated Rice Fields

Multipurpose Reservoir

Residential Buildings

Industrial and Trade Building

1

1/9

1/9

1/7

1/5

1/9

1/6

1/9

1

Mixed Forest

9

1

1

2

4

1

3

1

9

Primary Dryland Forest

9

1

1

2

4

1

3

1

9

Secondary Dryland Forest

7

1/2

1/2

1

2

1/3

2

1/4

7

Fields

5

1/4

1/4

1/2

1

1/5

1/4

1/6

4

Rubber Plantation

9

1

1

3

5

1

3

1/2

7

Irrigated Rice Fields

6

1/3

1/3

1/2

4

1/3

1

1/5

3

Multipurpose Reservoir

9

1

1

4

6

2

5

1

9

Residential Building

1

1/9

1/7

1/7

1/4

1/7

1/3

1/9

1

Total

56.00

5.31

5.34

13.29

26.45

6.12

17.75

4.34

50.00

Source: Analysis of AHP Questionnaire of Land Cover from Expert Opinion, 2022

Based on the results of the AHP questionnaire, normalisation can then be performed with the aim of determining the score for each criterion (see Table 7).

Table 7. Score for Ecoregion and Land Cover in Sukoharjo Regency.

Land Cover

Score

Ecoregion

Score

Industrial and Trade Building

0.15

Qa-F1

1.27

Mixed Forest

1.58

Qvm-F1

0.88

Primary Dryland Forest

1.58

Tomm-F1

0.59

Secondary Dryland Forest

0.83

Qvm-V7

0.71

Fields

0.42

Tomm-D7

0.46

Rubber Plantation

1.54

Tomm-D10

0.30

Irrigated Rice Fields

0.64

Qa-V5

1.28

Multipurpose Reservoir

2.08

Qvl-V5

1.38

Residential Buildings

0.17

Qvl-V4

2.14

Source: AHP Analysis for Ecoregions and Land Cover (2022)

Following the AHP and scoring process, Sukoharjo Regency has three ecosystem services levels for providing clean water, specifically low, medium and high. Two existing parameters, notably ecoregion and land cover, were then superimposed to produce an ecosystem services map for clean water supply in Sukoharjo Regency. Significant is that variations in rock types and topography within specific areas of Sukoharjo Regency will affect the ecosystem services level. The type of land cover in Sukoharjo Regency will also impact ecosystem services regarding providing clean water because it is related to the infiltration process and whether water can permeate the soil or develop into surface flows. Table 8 presents the distribution of ecosystem services for providing clean water in Sukoharjo Regency in 2022.

Table 8. Distribution of Ecosystem Services Clean Water Supply in Sukoharjo Regency.

No

District

Ecosystem Services Clean Water Supply (ha)

Total (ha)

Low

Medium

High

1

Baki

1,567.22

772.75

0.00

2,339.97

2

Bendosari

1,441.05

3,953.34

177.75

5,572.14

3

Bulu

2,256.97

2,383.07

0.00

4,640.04

4

Gatak

1,994.87

0.00

0.00

1,994.87

5

Grogol

2,131.98

1,001.42

0.00

3,133.40

6

Kartasura

2,166.03

0.00

0.00

2166.03

7

Mojolaban

1,558.26

2,271.01

0.00

3,829.27

8

Nguter

1,797.56

3,759.94

227.15

5,784.65

9

Polokarto

1,648.15

4,415.43

625.34

6,688.92

10

Sukoharjo

2,027.46

2,654.88

0.00

4,682.34

11

Tawangsari

2,264.53

1,667.21

0.00

3,931.74

12

Weru

2,305.25

2,254.86

0.00

4,560.12

Sukoharjo Regency

23,159.34

25,133.92

1,030.23

49,323.49

Percentage (%)

47%

51%

2%

100%

Source: Map Analysis of Clean Water Ecosystem Services in Sukoharjo Regency (2022)

Based on Table 8, Sukoharjo Regency is dominated by medium level clean water supply ecosystem services covering an area of 25,133.92 ha (51% of the total area of the Sukoharjo Regency). Ecosystem services for providing clean water within the smallest area in Sukoharjo Regency are observed to be of a high standard covering an area of 1,030.23 ha (2% of the total area of Sukoharjo Regency). Polokarto is the subdistrict with the largest high and medium level clean water supply ecosystem services, notably 1,030.23 ha for high level and 4,415.43 ha for medium level. Conversely, the sub-district with the most extensive low level ecosystem services is Weru with 2,305.25 ha. Figure 4 illustrates the map of clean water supply ecosystem services.

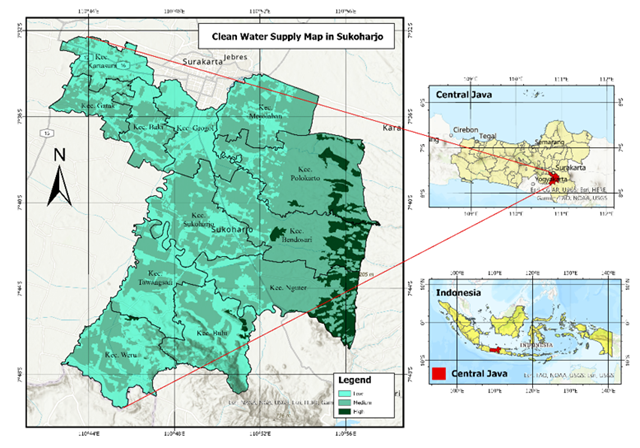

Figure 4. Map of Clean Water Supply Ecosystem Services in Sukoharjo Regency (2022).

Ecosystems can support life by providing benefits for living things, notably humans, related to the availability of clean water (Nguea, 2023). Water is essential for human life and has various uses with respect to households, industry, agriculture, plantations, and other activities (Ge et al., 2023). Rain and soil or rock layers that can store water and other factors, such as ecoregions, vegetation and land cover influence ecosystem services by providing clean water (Yang et al., 2023). Ecoregions characterised by the geological features of the Merapi and Lawu volcanoes are appropriate for producing clean water. However, if we examine land cover, multi-purpose reservoirs and land cover that has vegetation will tend to be better at producing clean water. Clean water can emanate from surface water, groundwater or rainwater (Deng et al., 2023).

Sukoharjo Regency is poor at producing clean water. The dominance of ecosystem services in providing medium and low-grade clean water is influenced by the lack of stands (a tree with a wooden trunk or vegetation), given that stands are primarily spread throughout the southern and eastern regions. The spatial pattern pertaining to the low-grade clean water ecosystem services supply in Sukoharjo Regency is predominantly observed in Gatak and Kartasura Districts, which are situated in the north and dominated by residential buildings.

3.3. Relationship between Urbanisation Rate and Clean Water Supply Ecosystem Services

The need for clean water is fundamental for the reason that water is essential for all living things, specifically humans. The production of clean water in an area varies according to the characteristics of each region (Yu et al., 2023). Criteria that affect production include ecoregions and land cover. The level of urbanisation is one factor that can increase the number of inhabitants in an area; the more people there are in an area, the greater the need for clean water (Ming et al., 2023).

The level of urbanisation and carrying capacity of the environment based on ecosystem services for providing clean water in Sukoharjo Regency each has three levels. Hence, the results of the cross-tabulation of eight levels are obtained. Table 6 presents the relationship between the urbanisation rate and ecosystem services related to the clean water supply in Sukoharjo Regency.

Table 6. Cross-Tabulation of the Urbanisation Level With Clean Water Supply Ecosystem Services.

                                                         Relationship Level Area (ha)

Urbanisation/ES Clean Water

Low

Medium

High

Low

6,319.07

7,810.22

227.15

Medium

7,421.92

13,278.51

803.08

High

9,418.35

4,045.19

0,00

Total

49.32349

Extent of Relationships

22.92401

Relationship Percentage

46%

Source: Researcher Analysis (2022)

Based on Table 6, the high urbanisation associated with ecosystem services providing low level clean water is 46% or medium level. The results of calculating the relationship establish that the urbanisation rate's ability to reduce the value of ecosystem services is at a medium level. This suggests that the level of urbanisation will correlate with ecosystem services. The minimal provision of ecosystem services providing high-quality clean water in Sukoharjo Regency is not only a result of urbanisation, but also involves other factors, primarily the existing anthropogenic activities.

3.4. Discussion

The impact of Surakarta City’s urban expansion exacerbates the anthropogenic impact across Sukoharjo Regency and the expanding population results in an even higher population density (Peng et al., 2023). Signs of the increase will cause changes to land cover or land conversion, transforming open land into built-up land or agricultural land into non-agricultural land. This urban population growth also has considerable environmental and social implications (Selang et al., 2018). Sukoharjo Regency is an area that is significantly affected by the development of Surakarta City, causing the northern part of the regency to experience rapid growth, to the extent that it will ultimately penetrate other regions. Klimanova et al. (2021) assert that there was a change in land function from initial vegetation to a watertight area in the suburban area. Likewise, Selang et al. (2018) maintain that the population growth on the periphery contributes the most to the formation of built-up land. More specifically, development towards urban areas will cause problems, for example, in Sukoharjo Regency, which has low water supply ecosystem services (Petsch et al., 2023).

Urbanisation is an important factor influencing the decline of ecosystem services (Noviani, 2021). Similarly, urbanisation will reduce the value of ecosystem services providing clean water resulting in a relatively low level (Tripathi et al., 2023). García et al. (2018) claim that trends generally indicate a decrease in the supply of ecosystem services due to changes in land cover in suburban areas. The change in Sukoharjo Regency as regards urban areas undoubtedly increases the demand for water. In 2022, ecosystem services providing high-quality clean water were accessible in practically half of Sukoharjo Regency. The existence of water is crucial for all humans, and when the population increases, the supply of raw materials for clean water will begin to halt (John et al., 2023). Also, increased anthropogenic activity will encourage a reduced supply of ecosystem services for clean water, indicating that clean water will be scarce (Thomaz, 2023). Furthermore, all human activities that require water, if not balanced with robust water resource management can have an impact on the quality and quantity of water resources (Muchtar et al., 2023). Increased anthropogenic activity in Sukoharjo Regency also has the potential to reduce the quality of clean water. Securing the preservation of clean water is imperative because access to water is vital as regards the city’s desire to become sustainable. According to Baco et al. (2020), ecosystem services providing clean water are essential for life. Controlling urbanisation in peri urban areas, principally by focusing on ecosystem services as a guide to making development decisions is essential. Moreover, mapping ecosystem services in Sukoharjo Regency can be a solution for development planning in peri-urban areas (Abanyie et al., 2023).

4. Conclusion

The level of urbanisation creates a pattern where districts close to Surakarta City or in northern Sukoharjo have higher levels than the southern region. An obvious gap in development exists between the northern and southern parts of Sukoharjo Regency. If the gap in development associated with urbanisation is not successfully addressed, there will be no equitable development. Owing to this, the northern part of Sukoharjo Regency will also be more densely populated increasing the likelihood that slums will develop. Moreover, this paper explains that the pattern of ecosystem services providing clean water in the northern region of Sukoharjo Regency tends to be low level. The relationship is 46% (middle level), signifying that the higher level of urbanisation in Sukoharjo Regency will reduce the value of ecosystem services.

Acknowledgments

The author would like to thank the Sukoharjo Regency Environmental Service for their assistance in providing some of the data and completing the questionnaire. The author also would like to thank  Geography Education, Sebelas Maret University. Finally, the au-thor would like to thank all parties who have supported both in terms of writing, fundingand data collec-tion.

Author Contributions

Conceptualisation: Aditya Eka Saputra , Setya Nugraha , Rita Novi-ani; methodology:Aditya Eka Sapu-tra , Setya Nugraha; investigation: Aditya Eka Saputra , Setya Nugraha; writing—original draft preparation: Aditya Eka Saputra , Setya Nugraha , Rita Noviani; writ-ing—review and editing:Aditya Eka Saputra , Setya Nugraha , Rita Noviani; visualisation: Aditya Eka Saputra , Setya NugrahaAll au-thorshave read and agreed to the published version of the manu-script.

References

Abanyie, Samuel Kojo, Boateng Ampadu, Nana Adwoa Frimpong, and Ebenezer Ebo Yahans Amuah. (2023). Impact of Improved Water Supply on Livelihood and Health: Emphasis on Doba and Nayagnia, Ghana. Innovation and Green Development, 2(1), 100033. doi: 10.1016/j.igd.2023.100033.

Admasu, Simeneh, Kumelachew Yeshitela, and Mekuria Argaw. (2023). Impacts of Land Use Land Cover Changes and Climate Variability on Water Yield in the Dire and Legedadi Watersheds Central Ethiopia. Water Conservation Science and Engineering, 8(1), 1–11. doi: 10.1007/s41101-023-00188-x.

Agus, Raja Tama Andri, and Mardalius Mardalius. (2019). Kombinasi Metode AHP Dan Weight Product Dalam Menganalisis Benih Padi Unggul. JURTEKSI (Jurnal Teknologi Dan Sistem Informasi), 6(1), 19–24. doi: 10.33330/jurteksi.v6i1.391.

Avelar Portillo, Lourdes Johanna, Georgia L. Kayser, Charlene Ko, Angelica Vasquez, Jimena Gonzalez, Diego Jose Avelar, Nayib Alvarenga, Meredith Franklin, and Yao Yi Chiang. (2023). Water, Sanitation, and Hygiene (WaSH) Insecurity in Unhoused Communities of Los Angeles, California. International Journal for Equity in Health, 22(1), 1–19. doi: 10.1186/s12939-023-01920-8.

Baco S, La, Kahirun Kahirun, Zulkarnain Zulkarnain, and Albasri Albasri. (2020). Analisis Sebaran Jasa Ekosistem Penyediaan Pangan Dan Air Di Daerah Karst (Studi Kasus Kabupaten Buton Tengah). BioWallacea : Jurnal Penelitian Biologi (Journal of Biological Research), 7(1), 1043. doi: 10.33772/biowallacea.v7i1.11041.

Badan Pusat Statistik Negara Kesatuan Republik Indonesia. (2020). Peraturan Kepala BPS No 120 Tahun 2020 Tentang Klasifikasi Desa, Perkotaan, Dan Perdesaan Di Indonesia 2020, Buku 2, Jawa.

Burlakova, Lyubov E., Alexander Y. Karatayev, Demetrio Boltovskoy, and Nancy M. Correa. (2023). Ecosystem Services Provided by the Exotic Bivalves Dreissena Polymorpha, D. Rostriformis Bugensis, and Limnoperna Fortunei. Vol. 850. Springer International Publishing.

Chen, Ru, and Chunbo Huang. (2021). Landscape Evolution and It ’ s Impact of Ecosystem Service Value of the Wuhan City , China.

Chen, Zilong, Jingyu Lin, and Jinliang Huang. (2023). Linking Ecosystem Service Flow to Water-Related Ecological Security Pattern: A Methodological Approach Applied to a Coastal Province of China. Journal of Environmental Management, 345(7), 118725. doi: 10.1016/j.jenvman.2023.118725.

Deng, Xuehua, Kangning Xiong, Yanghua Yu, Shihao Zhang, Lingwei Kong, and Yu Zhang. 2023. A Review of Ecosystem Service Trade-Offs/Synergies: Enlightenment for the Optimisation of Forest Ecosystem Functions in Karst Desertification Control. Forests, 14(88), 1–16. doi: 10.3390/f14010088.

Ferreira, Verónica, Ricardo Albariño, Aitor Larrañaga, Carri J. LeRoy, Frank O. Masese, and Marcelo S. Moretti. (2023). Ecosystem Services Provided by Small Streams: An Overview. Vol. 850. Springer International Publishing.

García-Nieto, Ana Paula, Ilse R. Geijzendorffer, Francesc Baró, Philip K. Roche, Alberte Bondeau, and Wolfgang Cramer. (2018). Impacts of Urbanisation around Mediterranean Cities: Changes in Ecosystem Service Supply. Ecological Indicators, 91(3), 589–606. doi: 10.1016/j.ecolind.2018.03.082.

Ge, Pengfei, Tan Liu, Xiaoxu Wu, and Xiulu Huang. (2023). Heterogenous Urbanisation and Agricultural Green Development Efficiency: Evidence from China. Sustainability (Switzerland), 15(7), 1–22. doi: 10.3390/su15075682.

Grimm, Nancy B., Stanley H. Faeth, Nancy E. Golubiewski, Charles L. Redman, Jianguo Wu, Xuemei Bai, and John M. Briggs. (2008). Global Change and The Ecology of Cities. Science, 319(5864), 756–60. doi: 10.1126/science.1150195.

HernándezReyes, Aurora Y. Rocha-Sánchez, and Juan Flores-Gracia. (2023). Patterns of Change and Successional Transition in a 47-Year Period (1973–2020) in Rangelands of the Tamaulipan Highlands, Northeastern Mexico. Forests, 14(815), 1–34. doi: 10.3390/f14040815.

Indratno, Imam, Irwinsyah Rahmat. (1998). Aplikasi Analisis Tabulasi Silang (Crosstab) Dalam Perencanaan Wilayah Kota Dan Ruang. 48–59.

John, Miia, R. Scott Semken, Aki Mikkola, and Antti Häkkinen. (2023). Natural Freeze Concentration of Wastewater for Nutrient Recovery. Cold Regions Science and Technology, 213(June), 103943. doi: 10.1016/j. coldregions.2023.103943.

Klimanova, Oxana, Olga Illarionova, and Karsten Grunewald. (2021). Green Infrastructure, Urbanisation and Ecosystem Services: The Main Challenges for Russia’s Largest Cities Oxana. Land, 10(1292), 1–22.

Li, Rong, Yu Shi, Chen Chieh Feng, and Luo Guo. (2021). The Spatial Relationship between Ecosystem Service Scarcity Value and Urbanisation from the Perspective of Heterogeneity in Typical Arid and Semiarid Regions of China. Ecological Indicators, 132, 108299. doi: 10.1016/j.ecolind.2021.108299.

Liu, Ranran, Xiaobin Dong, Xue chao Wang, Peng Zhang, Mengxue Liu, and Ying Zhang. (2021). Study on the Relationship among the Urbanisation Process, Ecosystem Services and Human Well-Being in an Arid Region in the Context of Carbon Flow: Taking the Manas River Basin as an Example. Ecological Indicators, 132, 108248. doi: 10.1016/j.ecolind.2021.108248.

Lossack, Harald, Claudia Mayer, Ingrid Prem, Kirsten Probst, Klemens Riha, and Konrad Uebelhoer. (2012). Mengintegrasikan Jasa Ekosistem Ke Dalam Perencanaan Pembangunan Pendekatan Selangkah Demi Selangkah Bagi Praktisi Berdasarkan.

Mardiansjah, Fadjar Hari, Wiwandari Handayani, and Jawoto Sih Setyono. (2018). Pertumbuhan Penduduk Perkotaan Dan Perkembangan Pola Distribusinya Pada Kawasan Metropolitan Surakarta. Jurnal Wilayah Dan Lingkungan 6(3), 215. doi: 10.14710/jwl.6.3.215-233.

Ming, Bo Wen, Zhou Yang, Ze Lin Yan, Chen Shi, Xiao Han Xu, Li Li, and Chun Quan Ou. (2023). Impact of Urbanisation on Morbidity of Hepatitis A: A National Panel Study in China during 2005–2018. Infectious Diseases of Poverty, 12(1), 1–10. doi: 10.1186/s40249-023-01104-0.

Molla, Morshed Hossan, Mohammad Abu Taiyeb Chowdhury, Md Muhibbullah, Kazi Md Barkat Ali, Md Habibur Rahman Bhuiyan, Suman Das, A. J. M. Morshed, Jewel Das, and Saiful Islam. (2023). Suitability of Drinking Water Quality in Chittagong Metropolitan City, Bangladesh: Research on Urban Water Bodies (UWBs) Using Multivariate Analytic Techniques. H2Open Journal, 6(2), 140–56. doi: 10.2166/h2oj.2023.015.

Muchtar, Farah Syuraih, Hayati Sari Hasibuan, and Philiphi De Rozari. (2023). Land Management Semi-Arid Archipelago Based on Water Carrying Capacity: Studies on Labuan Bajo, East Nusa Tenggara. Journal of Degraded and Mining Lands Management, 10(4), 4647. doi: 10.15243/jdmlm.2023.104.4647.

Muta’ali, Lutfi. (2015). Teknik Analisis Regional Untuk Perencanaan Wilayah, Tata Ruang Dan Lingkungan.

Nguea, Stéphane Mbiankeu. (2023). Improving Human Development through Urbanisation, Demographic Dividend and Biomass Energy Consumption. Sustainable Development, 31(4), 2517–35. doi: 10.1002/sd.2528.

Noviani, Rita. Et al. (2021). Dampak Urbanisasi Pada Jasa Ekosistem Di Kawasan Metropolitan Solo Raya 2021. I. Surakarta: Pramudita Press.

Nurjannah, Eva, Trisnaningsi, Yarmaidi. (2018). Tingkat Urbanisasi Dan Ciri Wilayah Perkotaan Di Kabupeten Pringsewu.

Okmaliasari, Asyellia Tri. (2021). Kesesuaian Prediksi Penggunaan Lahan Tahun 2025 Di Kabupaten Sukoharjo Terhadap Rencana Pola Ruang Kabupaten Sukoharjo 2011-2031 Menggunakan Ca-Markov Disusun.

Peng, Yuting, Natalie Welden, and Fabrice G. Renaud. (2023). A Framework for Integrating Ecosystem Services Indicators into Vulnerability and Risk Assessments of Deltaic Social-Ecological Systems. Journal of Environmental Management, 326(1), 116682. doi: 10.1016/j.jenvman.2022.116682.

Petrova, Slaveya, and Mariana Petkova. (2023). Plant Traits of Tilia Tomentosa Moench, Fraxinus Excelsior L., and Pinus Nigra J.F.Arnold as a Proxy of Urbanisation. Forests, 14(4), 1–16. doi: 10.3390/f14040800.

Petsch, Danielle Katharine, Vivian de Mello Cionek, Sidinei Magela Thomaz, and Natalia Carneiro Lacerda dos Santos. (2023). Ecosystem Services Provided by River-Floodplain Ecosystems. Hydrobiologia, 850(12–13), 2563–84. doi: 10.1007/s10750-022-04916-7.

Seena, Sahadevan, Christiane Baschien, Juliana Barros, Kandikere R. Sridhar, Manuel A. S. Graça, Heikki Mykrä, and Mirco Bundschuh. (2023). Ecosystem Services Provided by Fungi in Freshwaters: A Wake-up Call. Hydrobiologia, 850(12–13), 2779–94. doi: 10.1007/s10750-022-05030-4.

Selang, Magvirah Andira, Doddy Aditya Iskandar, and Retno Widodo. (2018). Tingkat Perkembangan Urbanisasi Spasial Di Pinggiran Kpy (Kawasan Perkotaan Yogyakarta) Tahun 2012-2016. Kota Layak Huni Urbanisasi Dan Pengembangan Perkotaan, 32–40.

Thomaz, Sidinei Magela. (2023). Ecosystem Services Provided by Freshwater Macrophytes. Hydrobiologia, 850, (12–13), 2757–77. doi: 10.1007/s10750-021-04739-y.

Tripathi, Akshar, Kapil Malik, Arjuman Rafiq Reshi, Md Moniruzzaman, and Reet Kamal Tiwari. (2023). Multi-Temporal SAR Interferometry (MTInSAR)-Based Study of Surface Subsidence and Its Impact on Krishna Godavari (KG) Basin in India: A Support Vector Approach. Environmental Monitoring and Assessment, 195(11), 1–17. doi: 10.1007/s10661-023-11896-1.

Wang, Jiali, Weiqi Zhou, Steward T. A. Pickett, Wenjuan Yu, and Weifeng Li. (2019). A Multiscale Analysis of Urbanisation Effects on Ecosystem Services Supply in an Urban Megaregion. Science of the Total Environment 662, 824–33. doi: 10.1016/j.scitotenv.2019.01.260.

Wei, Peijie, Shengyun Chen, Minghui Wu, Yanfang Deng, Haojie Xu, Yinglan Jia, and Fang Liu. (2021). Using the Invest Model to Assess the Impacts of Climate and Land Use Changes on Water Yield in the Upstream Regions of the Shule River Basin. Water (Switzerland), 13(9), 1–20. doi: 10.3390/w13091250.

Wibow, A., and J. M. Semedi. (2011). Model Spasial Dengan SMCE Untuk Kesesuaian Kawasan Industri. Majalah Ilmiah Globe, 13(1), 50–59.

Yang, Haijiang, Xiaohua Gou, Bing Xue, Weijing Ma, Wennong Kuang, Zhenyu Tu, Linlin Gao, Dingcai Yin, and Junzhou Zhang. (2023). Research on the Change of Alpine Ecosystem Service Value and Its Sustainable Development Path. Ecological Indicators, 146(3), 109893. doi: 10.1016/j.ecolind.2023.109893.

Yang, Yanying, Hua Zheng, Lingqiao Kong, Binbin Huang, Weihua Xu, and Zhiyun Ouyang. (2019). Mapping Ecosystem Services Bundles to Detect High- and Low-Value Ecosystem Services Areas for Land Use Management. Journal of Cleaner Production, 225, 11–17. doi: 10.1016/j.jclepro.2019.03.242.

Yu, Hang, Chen Chen, and Chao Feng Shao. (2023). Spatial and Temporal Changes in Ecosystem Service Driven by Ecological Compensation in the Xin’an River Basin, China. Ecological Indicators, 146(12), 109798. doi: 10.1016/j.ecolind.2022.109798.







Article Metrics

Abstract view(s): 352 time(s)

Refbacks

  • There are currently no refbacks.
