Forum Geografi, 35(1), 2021; DOI: 10.23917/forgeo.v35i1.12325

Spatial Analysis to Mitigate the Spread of Covid-19 Based on Regional Demographic Characteristics

Mochamad Firman Ghazali^1,*, Anggun Tridawati²,  Mamad Sugandi¹, Aqilla Fitdhea Anesta¹, Ketut Wikantika^2,3

¹ Geodesy and Geomatics Engineering, Universitas Lampung, Jl. Prof. Dr. Ir. Sumantri Brojonegoro, No: 1, Gedong Meneng, Kec. Rajabasa, Bandar Lampung, Lampung 35141

² Geodesy and Geomatics Engineering, Institut Teknologi Bandung

³ Remote Sensing and Geographic Information Science Expertise Group (INSIG), Institut Teknologi Bandung



*) Corresponding Author (e-mail: firman.ghazali@eng.unila.ac.id)

Abstract

COVID-19 is currently the hot topic of discussion by scientists because of its ability to quickly spread, in line with everyday human activities. One of the environmental factors related to climatic parameters, such as the air temperature, contributed to the spreading of COVID-19 in the last four months. Its distribution ability is no longer local as it successfully halts the important activities in many countries globally. This study aims to explain the opportunity of geospatial analysis in handling the COVID-19 distribution locally based on the characteristics of demographic data. Various data, including the confirmed positive for COVID-19, age-based population, and Landsat 8 satellite imagery data were used to determine the spatial characteristics of the COVID-19 distribution per September 2020 in Bandung, Indonesia. An inverse distance weighted (IDW), Moran's I index and local indicator spatial association (LISA), and a proposed ratio of the elderly population against the population with confirmed positive for COVID-19 (CoVE) were used as the approach to determine its distribution characteristics. The information derived from Landsat 8 satellite imagery, such as the residential area, surface temperature, and humidity based on the supervised classification, land surface temperature (LST), and the normalized difference water index (NDWI) was used to perform the analysis.  The results showed that the positive population of COVID-19 was concentrated in Bandung city. However, with a Moran's I value of 0.316, not all are grouped into the same category. There are only 8, 2, 5, and 3 districts categorized as HH, HL, LL, and LH. However, the areas with a large or small number of elderlies do not always correlate with the high number of confirmed positives for COVID-19. There are only 3, 1, and 3 districts classified as HH, HL, and LL. They were represented by the values of Moran's I, for about 0.057. The positive relationship between confirmed positive for COVID-19 and the built-up area, surface temperature, humidity, and the elderly population based on the coefficient of determination (R²) were 0.03, 0.28, 0.25, and 0.019, respectively. The study also shows that the vulnerability of those areas is relatively low. The study shows that the vulnerabilities in these areas are relatively low and the recommendation for COVID-19 widespread mitigation has to consider the demographic characteristics precisely in the large scale social restrictions (LSSR).

Keywords: COVID-19, inverse distance weighted, elderly population, spatial distribution, mitigation, Large-Scale Social Restrictions (LSSR)





1. Introduction

The pandemic occurs when disease spreads in a geographically large area. It is believed that it harms human life. Several viruses and bacteria, including Ebola, HIV/AIDS, and cholera were successfully created this condition (Gayle & Hill, 2001; Goeijenbier et al., 2014; Kaner & Schaack, 2016; WHO, 2020). Many environmental characteristics are believed to be one of the contributing factors that accelerate the distribution of many diseases. As mentioned in Jutla et al. (2013), various factors such as heavy rainfall, inundation, sanitary infrastructure, and human interaction with contaminated water have massive contributions to cholera distribution. The socio-cultural factor also plays a similar role in the distribution of diseases. As reported by Gayle & Hill (2001), in the United States the communities of color who are poor, undereducated, and have limited access to health services are increasingly at risk for HIV/AIDS. Another factors like population growth and direct interaction with wildlife may have contributed to the spread of the Ebola virus (Alexander et al., 2015).

 In the 2019 novel coronavirus disease (COVID-19) outbreak, some of the environmental conditions related to the socio-economic factors, including population density, urban and rural settings, education level, and settlement density have given a different level of vulnerability (Saadat et al., 2020). The climatic variation, such as temperature and relative humidity, are often used to explain the influences of COVID-19 widespread (Bherwani et al., 2020; Eslami & Jalili, 2020). The spatial pattern of COVID-19 is likely to follow the geographical characteristics that provide a different distribution pattern, so called cluster or non-cluster.  For example, the occurrence of COVID-19 distribution in the Italian province seems to follow the topography and elevation characteristics. It shows thatthe highest cases occur in the northern part of the area and gradually decrease to the southern part (Martellucci et al., 2020). The pattern is similar to the global distribution of COVID-19 reported by Shariati et al. (2020), after the epicenter in Wuhan, China (Kang et al., 2020). At least there are still several countries in the Pacific and most of the African countries reported as free of COVID-19 confirmed cases per September 2020.

Furthermore, the study conducted by Xie et al. (2020) explains that the spread of COVID-19 according to the total of the confirmed cases is enhanced by the average air temperature and socio-economic conditions. The total of confirmed cases directly described the existence of COVID-19 in those areas. On the other hand, the places without the confirmed cases can define as the safest and un-vulnerable of the COVID-19 exposure.  The relationship of its widespread based on socio-economic and climatic variables (e.g. temperature factors) are the crucial ones.  Moreover, the configuration on elevation, the urban and rural settlement setting, the composition on land-cover and land-use, the latitude, and seasonal change are useful to understand this outbreak geo-spatially.

Focusing on the temperature and other weather parameters is possible to obtain from the satellite data (Shah et al., 2013). Several studies have been carried out using environmental parameters throughout this COVID-19 occurrence. These studies consider various parameters, such as weather and climate conditions (Bariotakis et al., 2020; Qi et al., 2020; Tosepu et al., 2020), the demographics factors (Ahmadi et al., 2020; Coccia, 2020), and the combination of these two parameters combined with geographic location (Luo et al., 2020). However, these studies do not directly explain its occurrence that threatens human life (Dennis et al., 2005).

Other geospatial data, e.g. satellite images, is used to provide a different perspective. This data is used to observe the relationship between health issues and environmental quality (Seltenrich, 2014). Understanding the spread of diseases based on their spatial patterns, some critical environmental factors, socio-cultural conditions, including human activities are very effective. Franch-Pardo et al. (2020) explains that these factors clearly enhance the mitigation capability.

Apart from the contribution of atmospheric conditions to the distribution of COVID-19 (Lewis, 2020; Van Doremalen et al., 2020), demographic aspects have yet to be discussed in more detail from the previous studies. The demographic structure in the form of population composition based on age is possible to use as the input parameter to determine the distribution of COVID-19. In the narrower scope, this study analyzes the relationships between demographic structure and the numbers of confirmed COVID-19 cases in the city and regency level. The analysis is also combined with several derived environmental parameters from satellite image data including humidity and surface temperature.

Geographic information system (GIS) - based spatial analysis is the key to analyze the distribution of COVID-19. In the health sector, the spatial analysis is carried out using various methods, including spatial interpolation (DHS Spatial Interpolation Working Group, 2014; Meng et al., 2010), the spatial auto-correlation (Zhang et al., 2019), and the overlapping of various parameters, such as the number of confirmed cases, population density, and regional status (Roy et al., 2020). In one condition, large-scale social restriction (LSSR) policies have been implemented in many regions in Indonesia. This policy is made by considering the number of people affected by COVID-19. For example, in Jakarta, Indonesia, the second large-scale social restriction (LSSR) was confirmed by authorities when the COVID-19 cases reached 49,837 or nearly a quarter of the country's official tally of 203,342 cases. In the West Java region, after confirmed 641 cases, this region becomes the second-largest COVID-19 cases (Dipa, 2020; Fachriansyah, 2020). It was only considered due to the increased vulnerability value of the COVID-19 positive cases to be concerning. The urgency of regional characteristics and demographics has yet to be considered in the handling of COVID-19 in Indonesia. The opportunity of geospatial analysis based on demographical characteristics must be explored further. This study aims to explain the opportunity of geospatial analysis in handling the COVID-19 distribution in a local area. The integration of data, including the confirmed positive for COVID-19, the aging structure of the population, and Landsat 8 satellite imagery are used to determine its characteristics.



2. Research Method

2.1 Study location

Two locations in Bandung region (Figure 1), called Bandung City and Bandung Regency, were selected based on the consideration of the large-scale social restrictions (LSSR) policy implementation. Bandung City has 30 districts with 151 sub-districts, 2,404,589 inhabitants and covers an area of 167.67 km² (BPS Kota Bandung, 2020). It is relatively small compared to Bandung Regency. Bandung Regency covers the area of 1,762.39 km2, 31 districts with 270 sub-districts and 3,522,724 inhabitants (BPS Kabupaten Bandung, 2019).

Bandung City has implemented the LSSR policy, while Bandung regency has not. As documented from a local daily newspaper in the beginning of the pandemic, the government of Bandung City has implemented this policy twice. Bandung City and other regions in the Greater Bandung area have applied the LSSR from April 22nd to May 5th, 2020, and from May 6th to May 20th 2020 (Rizaldi, 2020). During these periods of time, the government of Bandung regency has yet to implement this policy (Mauludin, 2020). However, a few weeks later, the LSSR restriction has been applied to only five districts in that area (Handriansyah, 2020). In Indonesia, there are 33 provinces, where each province has several cities and regencies. Each city and regency have many districts and sub-districts that are also called villages in regency.

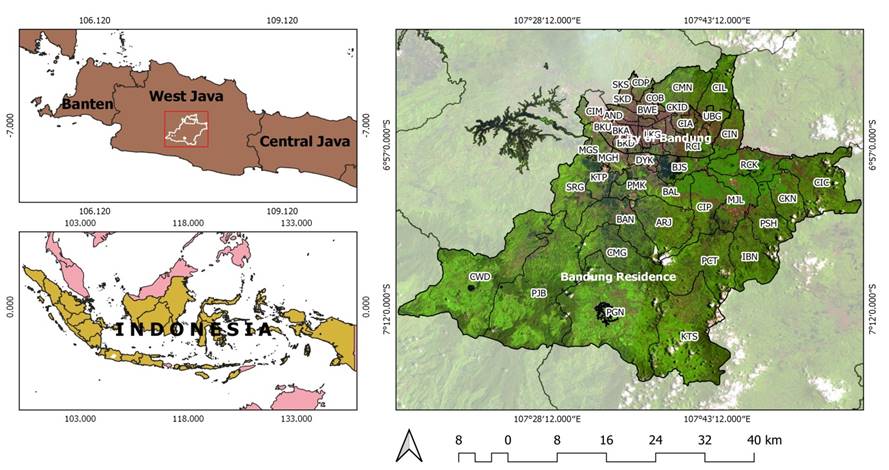

Figure 1. Study location for the distribution of COVID-19 in the Bandung region overlayed with a false-color composite of Landsat data image. The color represents different land-use (left figure) where green, brown, dark blue indicate the vegetated area, settlement and water, respectively.

2.2 Data

There are two types of data used in this study. The first is the tabular data which consists of the confirmed case of COVID-19 positive patients and population data in two locations up to sub-district and village levels. Data of the confirmed positive for COVID-19 was obtained for free from the West Java Government official website (https://pikobar.jabarprov.go.id/) accessed on September 25^th 2020. It shows the historical data from the early cases of COVID-19 in Bandung Region.

The population data is employed based on the aging structure, from the books published by the Central Statistics Agency (BPS), called "Kecamatan dalam Angka 2020" for all districts in Bandung Region. This data explicitly divides the population into different age groups, from 0 to 64+ years old. The age population data is classified into the following categories: up to 15 years, 15 – 64 years and 65+ years.

There are 61 books collected for age population data. Although the aging structure in Bandung City is available until the sub-districts as the lowest level, the similar data for the Bandung Regency is only available until the districts level. Formally they are different, however, the analysis is possible to equalize by summing up the elderly population in the sub-districts level within the same districts. Therefore, both data level between the Bandung City and Bandung Regency can be equal. Table 1 shows the highest confirmed COVID-19 cases and the elderly population. It shows that Cicendo and Mandalajati districts have the highest number of elderly populations.

Table 1. Descriptive statistics of confirmed case of COVID -19 positive and elderly people.

Source: processed from  (BPS Kabupaten Bandung, 2020; BPS Kota Bandung, 2020; Pusat Informasi dan Koordinasi COVID-19 Jawa Barat, 2020)

The second data is the geospatial, including the administrative borders of the Bandung Region from https://tanahair.indonesia.go.id/, and Landsat 8 satellite image data of path 122 and row 65 from https://earthexplorer.usgs.gov.  The scene of Landsat 8 data image is chosen based on the clearest cloud coverage and obtained at different times, then combined with the collected data of confirmed COVID-19. The closest acquisition time of Landsat 8 satellite data is on September 13th 2020. Various conditions in the Landsat 8 data are used only to derive the residential area, surface temperature, and surface humidity. Details of Landsat 8 satellite images are shown in the Table 2.

Table 2. Landsat 8 data satellite image characteristics.

No	Path/Row	Band	Scene and Recorded time	Spatial Resolution	Purpose
1	122/65	Green, Red, Near-infrared, Shortwave infrared, and thermal	LC81220652020257LGN00 September 13th 2020	30, 30, 30, 30, and 30*	NDWI, LST, and Supervised classification

*resampled to 30 from 100 meters.

2.3 Data processing

The confirmed COVID-19 cases data is necessary and corresponds with the aging structure data of respective districts in the study areas. These two data are used as the main attributes. The number of elderly, adult, young population, and the ratio between confirmed positive COVID-19 against the number of elderly are the important factors for the analysis in this study.  All the attributes stored in vector data of administrative boundaries of the Bandung region are used as the inputs of the interpolated maps, including the positive-confirmed distribution and the ratio of the elderly population to the confirmed case of COVID-19 positive population (CoVE).

Additionally, this research introduces a new parameter, namely, CoVE. Once the equalizing procedure of the aging structure is applied, the CoVE can be obtained. To compute this ratio, the total population of confirmed case of COVID-19 positive (∑C) and the total elderly (> 65 years) population (∑E) are required (Eq. 1). This formula is utilized as the confirmed case of COVID-19 positive is available in both districts and sub-districts level and has different structures compared to the aging population data provided by the Central Statistics Agency (BPS). As mentioned before, the aging population data at the sub-district level are only available for Bandung City and at the district level in Bandung Regency.



 x 100                                                                                                                                                                                                                                                (1)



The confirmed case of COVID-19 positive collected data is proceed without presenting the geographic location of the individual patient. It produces some limitations of both data interpretation and its quality.  The term of limitation is related to the confirmed COVID-19 cases stored in the more extensive spatial coverage. At the same time, the individual data is unable to be shared to the public. However, the interpolation methods are considerably able to minimize this limitation as the neighboring values (confirmed COVID-19) are related. This also can be explained by Tobler (1970) that everything is related to everything else, but nearby things are more related than distant things. This explanation means the areas with the confirmed case of COVID-19 positive is potentially influenced by the surrounding areas. Even though each district has it, the analysis is unable to locate the occurrence precisely, and triggers the failure of interpretation when it is used for the smaller area than district level. In other words, the average of a group is not always the representative of the individuals (Dark & Bram, 2007; Portnov et al., 2007).

A spatial interpolation based on the inverse distance weighting (IDW) method is implemented for both the confirmed case of COVID-19 positive and the elderly population. This method does not require statistical calculation as kriging needs. It is only deployed a distance within known values (Seyedmohammadi et al., 2016). The parameter used for computing an IDW needs known values (z) and the distance (d) (Eq. 2).



(2)



 The distribution of confirmed COVID-19 and the CoVE in Bandung Region is evaluated using the spatial autocorrelation based on the global Moran's I, and it is expanded using the local indicator spatial association (LISA). Both are exciting methods to offer a widely usage of application, that calculate the correlation of values in a space and put it into a cluster and non-cluster to assess the spatial pattern of an object. Previously the global Moran's I is proposed by Moran (1950) and LISA is explained by Anselin (1995). Many studies are implemented both concepts to understand the health phenomena, such as analysis of hand, foot, and mouth disease distribution in Shantou (Zhang et al., 2019), community health development (Anuraga & Sulistiyawan, 2017), and poverty in East Java province (Bekti, 2012).

The formula is utilized for global Moran's I computation which requires w, So, and Zi, where Zj as weights, deviations from the mean, and the sums of all weights at row standardized weights, respectively (Geoda, 2020). This parameter is shown in the formula (Eq. 2). All the variables used for LISA in Eq. 2 is explained in the formula below (Eq. 3-7). At the time, the values of Moran's I is already well-known and has positive values to indicate the similarities of the high or low attribute values from the neighboring features. These conditions are used as the basis for the clustering, as well as when a negative value is obtained (ArcGIS, 2020).



	(3)
	(4)
	(5)
	(6)
	(7)

The satellite data of Landsat 8 is necessary to conduct the pre-processing steps. This process involves two sequential processes including the radiometric and atmospheric corrections. Both steps aim to obtain a corrected value of the digital number (DN) which is free from the atmospheric influence, and in the form of the bottom of atmospheric (BoA) reflectance. This satellite image is already corrected geometrically, and does not need to perform the geometric correction (U. S. Geological Survey, 2016). A dark object subtraction processed by (Chavez, 1988) is used to obtain the BoA reflectance. The corrected image of Landsat 8 is essential to improve the classification result (Lin et al., 2015).

Since the Landsat 8 is already corrected both radiometrically and atmospherically, it is then used to derive the surface moisture information based on the study conducted by McFeeters (2013). The ratio between the corrected green (B2) and near-infrared (B5) bands are employed to compute the normalized difference water index (NDWI) (Eq. 8). Besides that, the same formula by Sobrino et al. (2004) and Weng et al. (2004) is implemented to estimate the surface temperature (LST). Generally, the results depend on the quality of the thermal band (B10) (Eq. 9-11). Both results correspond with the distribution of residential area (built-up) that is obtained through a minimum distance method of supervised classification, with the overall accuracy and the kappa coefficient are 72% and 0.44, respectively. The suggested range for the kappa coefficient group is moderate, for the result of minimum distance method (Richards, 2013).

The LST is computed by three stages (Eq.14), including the digital numbers (DN) converting of the thermal band to radiance (Eq.9), computing the brightness temperature using the Planck Formula (Eq.10) and calculating the surface emissivity (Eq.11). From the normalized difference vegetation index (NDVI), proportion vegetation (Pv), the maximum and minimum values of NDVI are required to determine the Pv of -0.33 and 0.54, respectively (Eq. 12-13). The thermal band (band 10) of Landsat 8 converts into the spectral radiance before calculating the LST. The  is the spectral radiance in watts/ (m−2 srad−1 μm−1);  is the band multiplicative rescaling factor;  is the band-specific additive rescaling factor;  is the DN values of band 10;  is the brightness temperature in Celcius; K1 and K2 are thermal conversion constants which are taken from the metadata. For LST,  is the wavelength of emitted radiance (11.5 µm),, and is emissivity (Cartalis, 2019). The entire process is shown in the diagram below (Figure 2).



	(8)
	(9)
	(10)
	(11)
	(12)
	(13)
	(14)

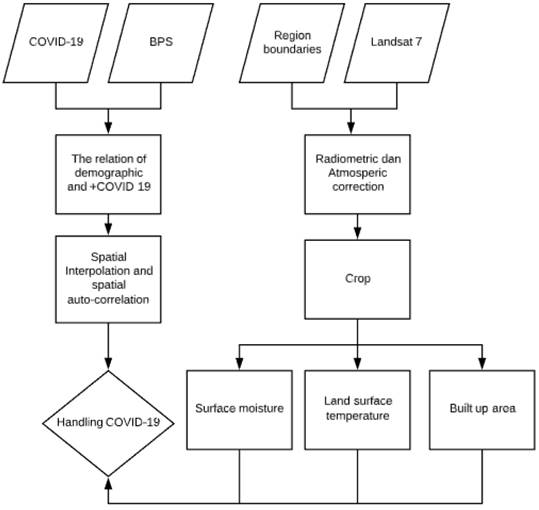

Figure 2. Research workflow.

The results of the two stages are the visual analysis showing a correlation between the spatial autocorrelation of COVID-19 sufferers in the entire study area. Likewise, with satellite data analysis, there is a correlation between COVID-19, the demographic structure, and information derived from the Landsat 8 satellite image. Finally, they are all used to layout a recommendation for formulating an area that must implement the large-scale social restrictions (LSSR) policy.



3. Results and Discussion

3.1 Spatial distribution of the confirmed case of COVID-19 positive

The total population positively confirmed COVID-19 from all areas in the entire study area ranges from 1 to 47 people in each district. The results of spatial interpolation using the IDW method show that the distribution of the population is the confirmed case of COVID-19 positive in all study areas (Figure 3). The map shows that the total of people confirmed positively of COVID-19 tends to decreases into the south, while it gradually increases to the north that closes to Bandung City.

The top seven areas with high confirmed positive COVID-19 populations are highlighted in the dark red color. These places are situated in the following districts: Cicendo (CIE), Bandung Kulon (BKU), Sukajadi (SKD), Buah Batu (BBT), and Lengkong (LKG), Coblong (COB) and Bojong Soang (BJS). There are 47 cases in CIE, 36 cases in BKU, 34 cases in BBT and SKD, and 32 cases in BJS, COB and LKG. The cases are higher compared to Bandung Regency, where there is only one reported case (in MJL).

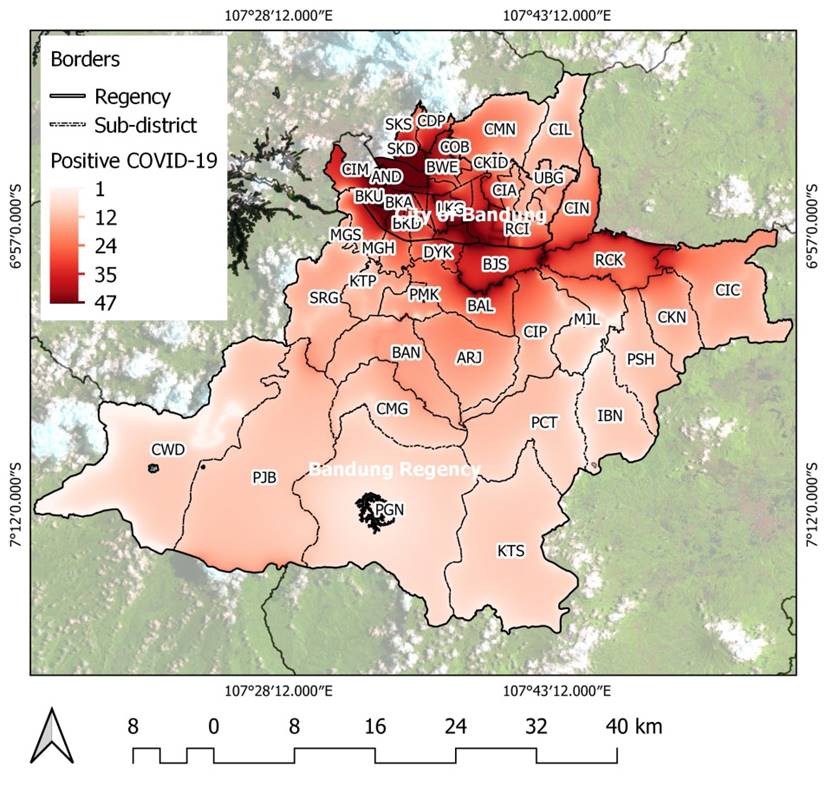

Figure 3. The distribution of the confirmed COVID-19 positive population.

This condition causes the area of Greater Bandung (Both City and Bandung Regency) to be spatially segmented based on the population of the confirmed case of COVID-19 positive. The population can be categorized into three regions: low, medium, and high cases (Figure 3). The map is generated from the accumulation of the confirmed case of COVID-19 positive data from all sub-districts and districts, up to the district level where the lowest number is one and the highest number is 47. The interpolated map uses this data to provide a better and detail information, rather than using the accumulation cases at the sub-district level.

3.2 Spatial distribution of CoVE

The map of CoVE shows the ratio between the population the confirmed case of COVID-19 positive to the number of elderly (65+ years) based on the formula (1). The ratio ranges from 0.01 to 0.83 and the distribution is presented in the interpolation map (Figure 4). The maximum value of 0.83 on the map corresponds to the area with the highest COVID-19 cases of 32 people from 3855 elderly population which is in Bojong Soang (BJS) district. In general, the values of CoVE do not have a linear trend. On the other hand, the areas with the highest elderly population do not always have the highest COVID-19 cases, or vice versa. The interpretation has to follow the rules since the number of cases is relatively high. Even with the un-linear correlation between elderly population and COVID-19 cases in various districts and the number of the elderly population are similar, the area would become more vulnerable to the COVID-19. Apart of that factor, the vulnerable level is also influenced by the size of the district whose the CoVE values are more than 0.5, including Sumur Bandung (SMB), Buah Batu (BBT), Cibiru (CBR), Gedebage (GDB), Cicendo (CIE), and Bojong Soang (BJS).

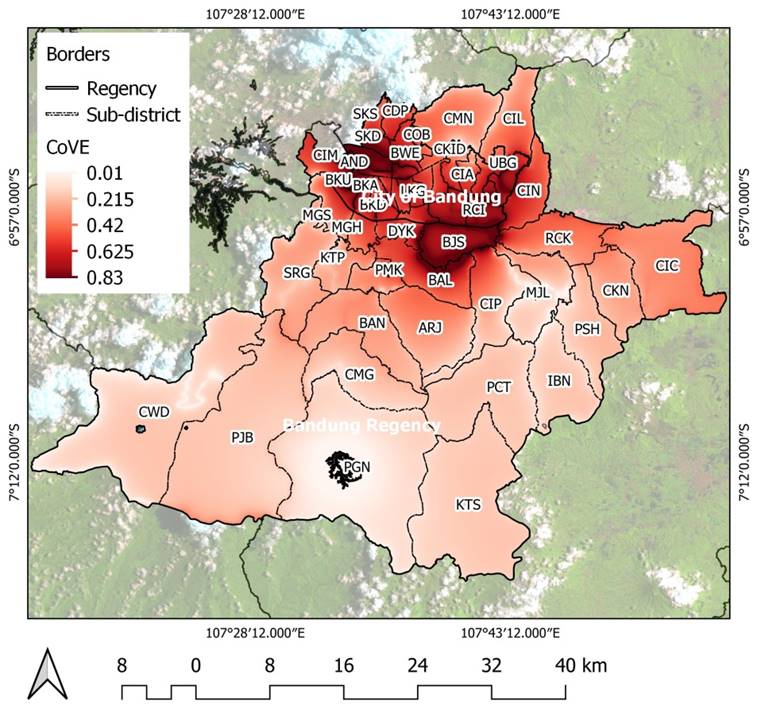

Figure 4. Distribution Map of the ratio of the old population to the positive population (+) of

COVID-19.

3.3 Spatial Autocorrelation of the confirmed case of COVID-19 positive and  CoVE

Statistically, the relationship between the positive (+) population and the number of older people is nearly unrelated. The scatter diagram from the two data has a coefficient of determination (R²) of 0.00217. Spatially, a separate analysis is required by implementing the spatial autocorrelation approach. Based on the map of the local indicator spatial association (LISA), five regional clustered areas are obtained from the data on the number of positive population (+) COVID-19 (Figure 5). The eight districts are categorized as high-high (HH), two districts as high-low (HL), five districts as low-low (LL), and three districts as low-high (LH). In contrast, the remaining areas are categorized as not significant (NS) statistically. The eight regions with the HH are Sukajadi (SKD), Cicendo (CIE), Andir (AND), Sumur Bandung (SMB), Astana Anyar (AST), Regol (RGL), Bandung Kidul (BKI) and Buah Batu (BBT) districts. Meanwhile, those categorized as not significant (NS) occurred in areas with a low case of COVID-19. However, all these configurations are produced after the LISA analysis, where they indicate the trends of how the COVID-19 should be handled. There is no more large-scale social restrictions (LSSR) implementation. Local-scale social restrictions for several sub-districts in the south Bandung regency (Pasirjambu & Margaasih, and Pacet & Majalaya) are suggested to follow this scheme. However, a cluster of the COVID-19 distribution in the Bandung Region from the implementation of LISA is not clustered perfectly. The regional clustered conditions are illustrated by the scatter plot diagram of Moran's I of 0.316 (Figure 5a).

The eight districts that are clustered as HH are situated in Bandung City. One of the members is Cicendo (CIE) which has the highest confirmed COVID-19 cases. It is located between other districts, such as Sukajadi (SKD), Andir (AND), Sumur Bandung (SMB), Astana Anyar (AST), Regol (RGL), Bandung Kidul (BKI) and Buah Batu (BBT) where the cases are 34, 29, 15, 16, 17, 31, and 34, respectively. This group is arranged based on the queen contiguity for weighted criteria. All the members do not always have the highest confirmed COVID-19 cases. Otherwise, the specific configuration has all the districts according to their relative positions to other regions. For example, the Sumur Bandung (SMB) has a lower case compared to other regions within this group. However, it is still higher compared to the other groups.

The ratio of the population of the confirmed case of COVID-19 positive to the total population of old age (65+ years) based on the local indicator spatial association (LISA) results four regional groupings (regional clustered) (Figure 5b). The study reveals the following classification: three districts are classified as high-high (HH), one district as high-low (HL), and three districts as low-low (LL). The remaining areas are categorized as not statistically significant (NS). The three districts with the HH category are Cibeunying Kidul (CKID), Kiaracondong (KRC) and Antapani (ATP). Not significant (NS) is occurred in the low case area of COVID-19. The regional clustered condition is illustrated by the spread diagram of Moran's I of 0.057 (Figure 5b).

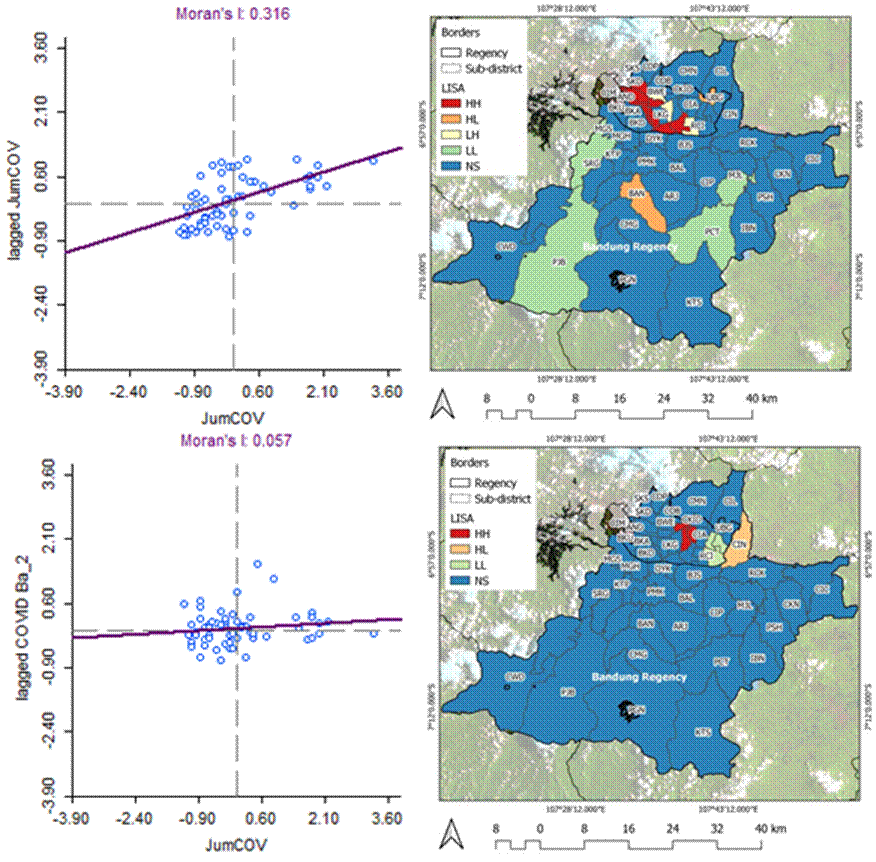

Figure 5. Map of distribution of the confirmed case of COVID-19 positive (above), and the CoVE ratio based on the Moran's I and LISA (bottom).

The previous study explains that the highest values of Moran's I are found in observing dynamic objects. For instance, the study by Santoso et al. (2019) reveals the increasing number in the manufacturing industries. The other study related to the health which correlated to the population number by Jackson et al. (2010) reveals the lowest value of Moran's I. Confirmed with other studies of the chemical compound in the soil, the Moran's I tends to give moderate to low values (Huo et al., 2012). The result from Moran's I of CoVE unveils the similar value with one by Jackson et al. (2010). Though both examples implement the phenomena with the less dynamic object such as human population. Finally, the Moran's I value of the confirmed case of COVID-19 positive is similar to the study from Santoso et al. (2019). This issue is a very dynamic object in the present time globally.



3.4 Environmental characteristics during the pandemic of COVID-19

The estimated values of NDWI and LST are resulted by the built-up areas derived from the minimum distance classification. The information of the covered the area is within the built-up region and the outside part of the built-up region is excluded from the analysis.

As a settlement area, the estimated values of the surface humidity in the entire study area range from -0.45 to 0.03. These values indicate the lower capability of built-up areas in absorbing the water, unlike the vegetated and the bare soil areas. When the highest values are still lower, they are situated in the denser residential areas. These are typically occurred in the urban region like Bandung City. The estimated values of the surface temperature follow the same trend with the values of the surface humidity. The estimated values range from 20.2 to 32.6OC and correspond with the lowest and the dense residential areas (Figure 6).

The relation between the confirmed case of COVID-19 positive population to the environmental parameters including the built-up area (settlement), the surface temperature in the built-up area, surface humidity, and the elderly population are based on the coefficient of determination (R²) and give results of 0.03, 0.28, 0.25 and 0.019, respectively. The results of statistical calculations with this regression explain that the four experimental parameters positively correlate the distribution of COVID-19 in both locations in the Bandung region. This relationship describes its limitation based on the time observation on September 25th 2020.

Even though the correlation shows a weak category, the most exciting environmental parameters generate the highest values and are successfully established as new insights. Since both surface temperature and surface humidity in the built-up area are defined, they are still too early to utilize as the main parameters to build a proposed model for predicting the same situation in other places. Even though both surface temperature and surface humidity can change faster overtime, it is insufficient to illustrate the two factors to understand the distribution of COVID-19 in a small area. They are not supported by the competent statistical computation and expected to give the highest correlation determination (R²).  The study results obtained by correlating information from the surface temperature extraction and surface humidity values are calculated based on the NDWI and LST formulas that are relatively large values, compared with two other parameters. These other parameters are the number of the elderly population and building area (settlement). These are also confirmed by the previous studies (Bariotakis et al., 2020; Qi et al., 2020; Tosepu et al., 2020; Xie et al., 2020) in which the same level of correlation is produced when it is applied to the small area like Bandung region. The distribution of surface temperature, surface humidity, and the built-up area, along with their environment values are presented on the maps (Figure 6) and the detailed values (Table 3).

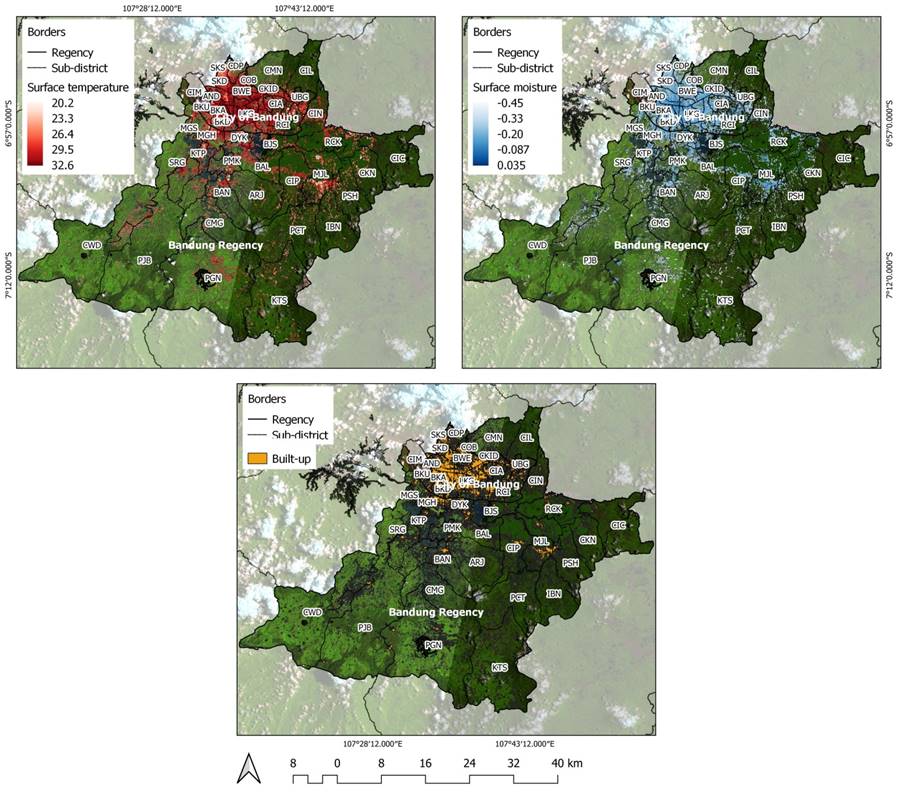

Figure 6. Distribution of residential areas (bottom), surface temperature (top left) and humidity (top right) as the result of supervised classification, LST, and NDWI.

Table 3. Description of the residential area, surface temperature, and humidity, as well as the number of residents, the confirmed case of COVID-19 positive and the elderly population.



According to Table 3, several selected districts in the Bandung region shows the significant number of the confirmed case of COVID-19 positive when the estimated surface humidity values are low. The significant cases are also noticed in the area with higher surface temperature. Moreover, the number of older people within the area also contribute to the high cases of the COVID-19. The cases also have a linear correlation with the size of settlement areas, even with the less capacity based on the statistics.

4. Conclusion

Spatial analysis using spatial and non-spatial data integration provide another perspective in terms of the pattern and direction of the distribution of COVID-19. Demographic parameters have a lower correlation than the parameters of temperature, humidity, and residence area to the number of people the confirmed case of COVID-19 positive, including age and settlement size. Meanwhile, the application of spatial autocorrelation provides directions for handling the COVID-19 outbreak. The local government may consider to implement the spatial pattern obtained from LISA analysis. In this case, the application of large-scale social restrictions (LSSR) is more targeted and not divided based on the administrative boundaries but the spatial linkage instead. It would be useful to implement the partial scale social restrictions and consider the number of elderly people as the main variable. This is considered as they reside in some sub-districts where higher numbers of the confirmed case of COVID-19 positive are found. As the member of HH group, the Sukajadi (SKD), Cicendo (CIE), Andir (AND), Sumur Bandung (SMB), Astana Anyar (AST), Regol (RGL), Bandung Kidul (BKI) and Buah Batu (BBT) districts can be prioritized as the primarily targeted regions to minimize the harmful effect of the COVID-19 exposure. A similar method can also be applied to other groups. It requires the integration of each district where the existence of administrative boundaries is excluded. The application of spatial interpolation is likely the most straightforward step to determine the spatial trend of the COVID-19 outbreak distribution. In fact, the other distribution patterns are also crucial, including the other demographic parameters such as maternity, number of children, and mortality rate during the COVID-19 outbreaks. These parameters should be considered for further studies for a detailed analysis.
